IP503H
Wide Area Coverage over LTE (4G) and (3G) Network
Using an LTE (4G) and 3G network, the IP503H can provide stable connection and wide area communication throughout the coverage of the network. The IP503H does not require its own repeaters or IP network which reduces the cost of building and maintaining a wide area radio network. All communication is managed by out cloud server based in Australia.
Icom's monthly plan frees you of all initial investments and recurring licence fee. To get a free trial contact our sales team at sales@icom.net.au
The IP503H provides wide area communication using an LTE (4G) and 3G network and instantaneous communication. Individual calls, Group calls or All calls can be made the same way as a conventional two-way radio.
- Full-Duplex Communication
The IP503H enables the use of full-duplex communication which provides smooth telephone style conversations. The IP503H users can talk and receive at the same time.
- Australian Based Secure Cloud Server
Assurance and peace of mind that your communications and data are secure and located in Australia
- Multiple User Communication
Multiple users in the system can initiate calls respectively. There are no requirements to check or wait for channel availability.
- Data Security
Strict corporate governance has been applied to our Australian based cloud server
- Priority Interrupt Calling
The IP503H supports group calls with three or more people.
In case of an emergency, you can break into an on-going call to transmit an important message.
- Industry Leading Compact and Lightweight Body
Compact 59 × 95 × 32 mm; 2.3 × 3.7 × 1.3 in and 240 g; 8.5 oz (approximate)
lightweight body* allows non-intrusive mobility and use.
* With BP-272 battery pack and antenna. Projections are not included.
- IP67 Dust-Tight and Waterproof
The IP503H has a reputable waterproof performance to endure 1 m depth of water for 30 minutes.
It can be used for outdoor work or places prone to get wet.
- Optional Charger Cradle With Bluetooth® Function

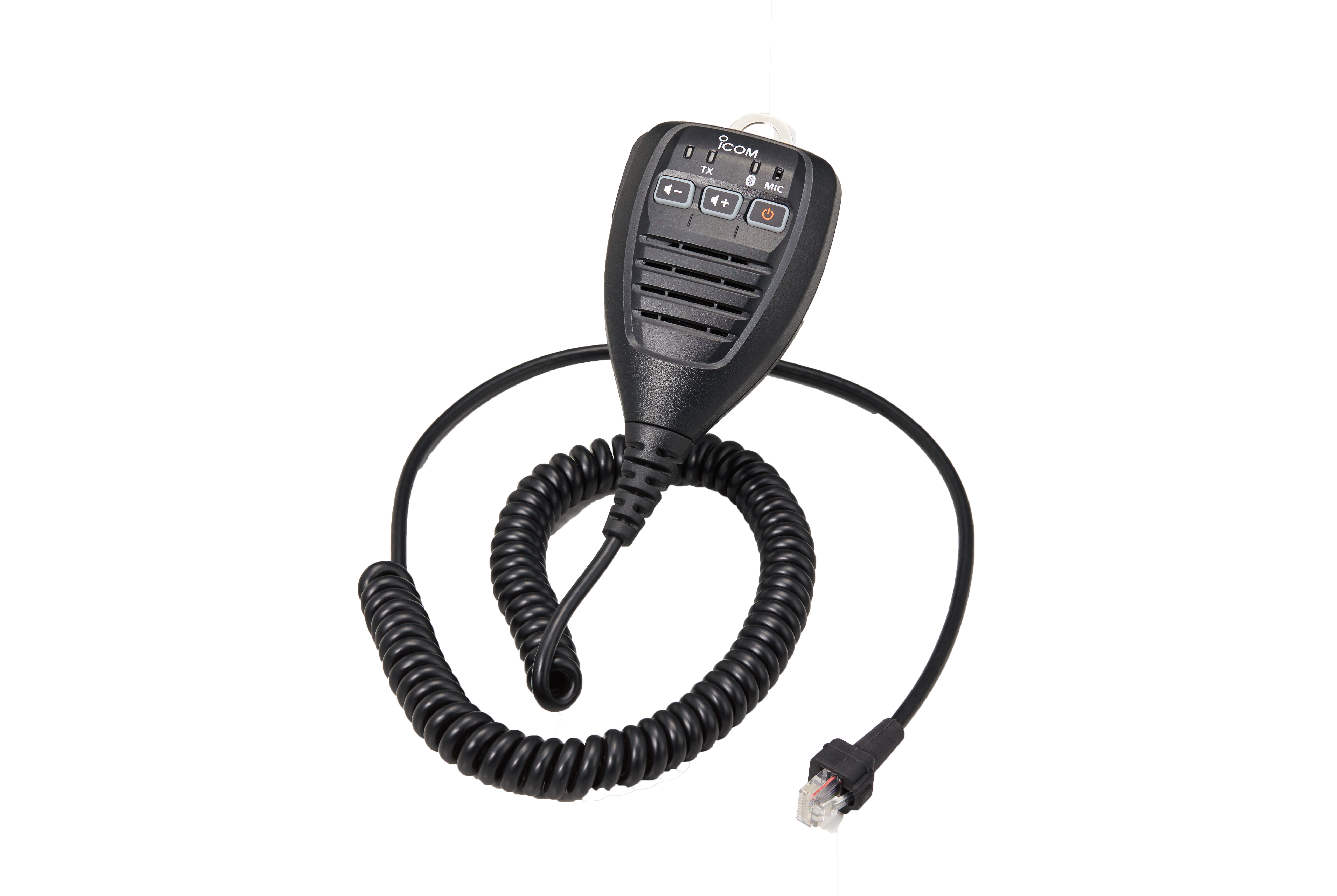

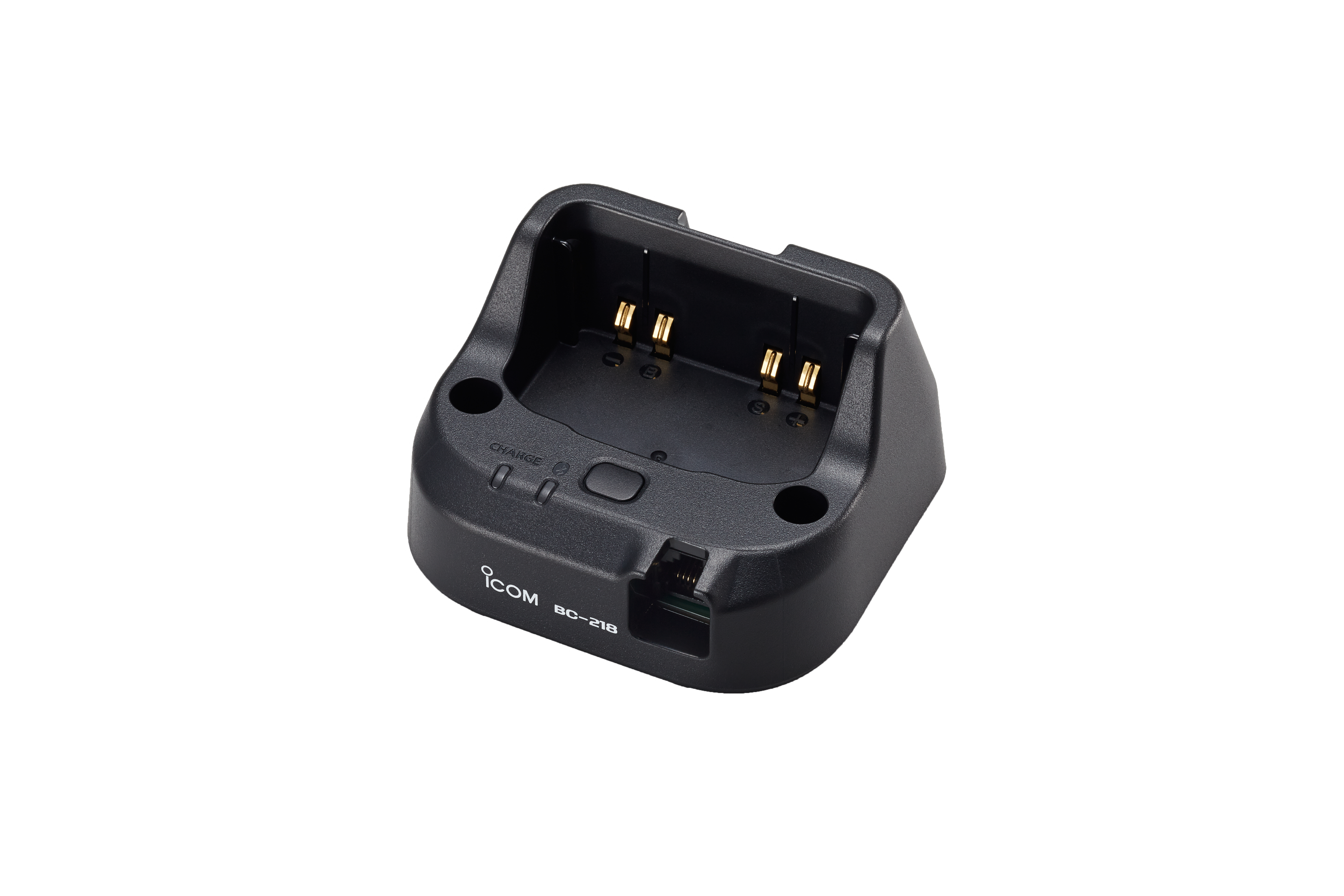

When the optional BC-218, charger cradle, and HM-215, speaker-microphone is used,
calls can be made with the microphone while charging the IP503H.
Even when the IP503H is not dropped into the BC-218,
the Bluetooth® function enables you to wirelessly use the speaker-microphone.
* Service availability depends on the country. Network coverage provided by custom ICOM SIM card.
* May not be available in some countries. Please confirm the regulations in your country before you use.
- Other Features:
- High quality, clear audio using G.726 Vocoder
• Individual, Group, Talkgroup, Multiplex Talkgroup and All Calls
• Emergency button, Lone Worker, and Man Down functions
• Vibration alert function notifies an incoming call
• Text message reception and preprogrammed
message transmission
• Up to 500 memory address book
(including Group, Individual, Talkgroup and Telephone lists)
• Voice message recording
• Built-in Bluetooth® and GPS*
*Gateway device required for GPS data (future)
| Network | 4G bands: | LTE B1, B3, B7, B8, B20 (EXP) LTE B1, B3, B5, B7, B8, B28 (AUS) |
| 3G bands: | W-CDMA B1, B8 (EXP) W-CDMA B1, B5 (AUS) |
|
| Dimensions (W × H × D; Projections not included) |
59 × 95 × 32 mm; 2.3 × 3.7 × 1.3 in (with BP-272) |
|
| Weight (approx.) | 240 g; 8.5 oz (with BP-272 and antenna) | |
| Voice Codec | G.726 (32 kbps) | |
| AF output power
(8 Ω at 10% distortion) |
Internal SP | More than 900 mW |
| External SP | More than 200 mW | |
| Operating time* (5:5:90 duty cycle.) | More than 17 hours (with BP-272) | |
| Bluetooth | Ver 2.1 +EDR | |
| GPS | Built-in | |
| Operating temperature | –10 °C to +60 °C; +14 °F to +140 °F | |
| IP rating | IP67 (dust-tight and immersion) IP55/54 (dust and water jet/water resistance) |
|
* Operating time may differ depending on operating environments. All stated specifications are subject to change without notice or obligation
Applicable U.S. Military Specifications
| MIL 810G Standard | Method | Procedure |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Supplied accessories:
• BP-272 Li-ion battery pack • MB-135 belt clip • Hand strap • Antenna
Please ask your Icom distributor in your country about the planned launch date of the service or other requirements. This product requires the system construction working in collaboration with a mobile network operator. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries. IDAS is a trademark of Icom Incorporated. The Bluetooth® word mark and logos are registered trademark owned by Bluetooth SIG, Inc. and any use of such marks by Icom Inc. is under license. All other trademarks are the properties of their respective holders.

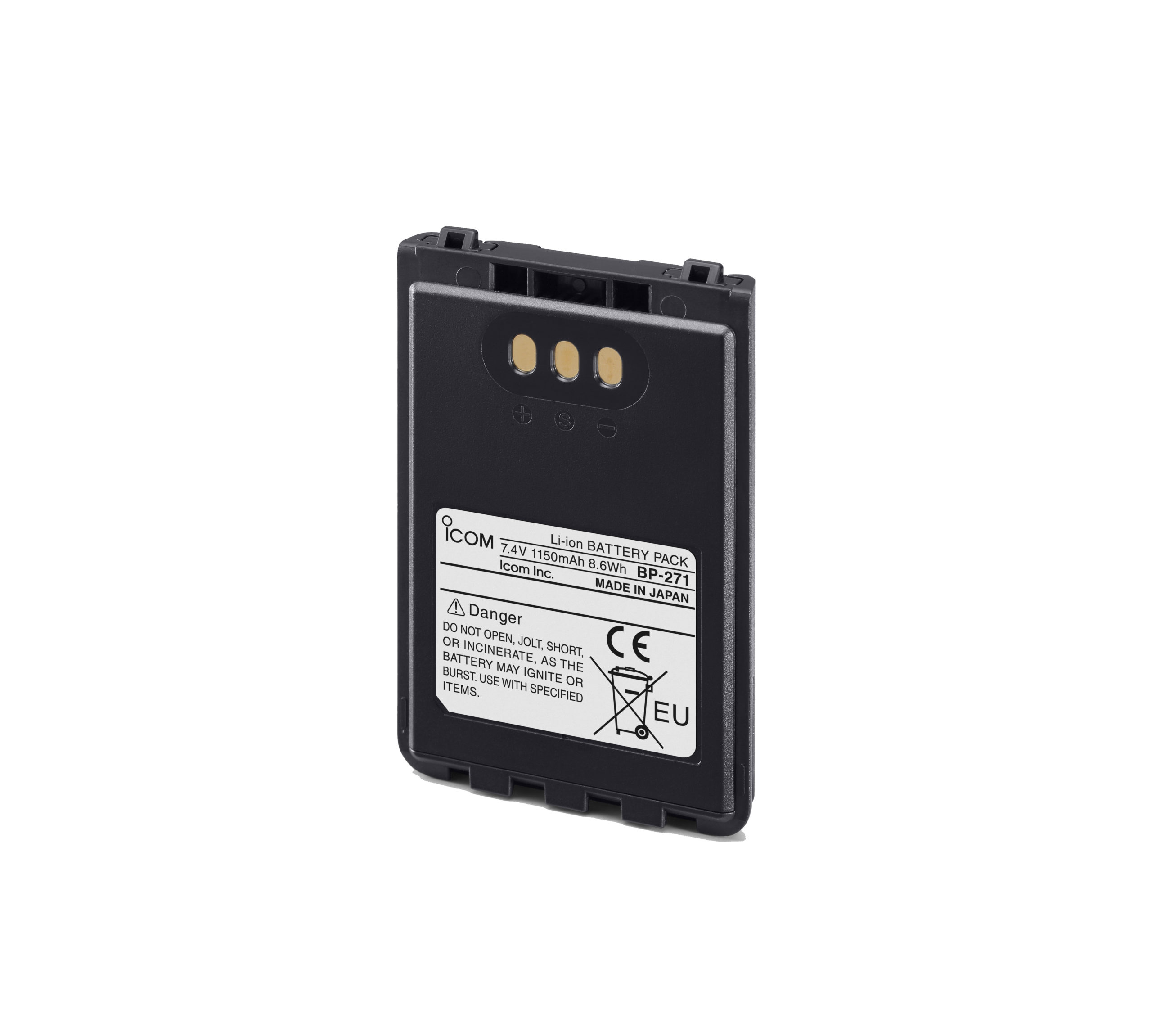

Battery Packs

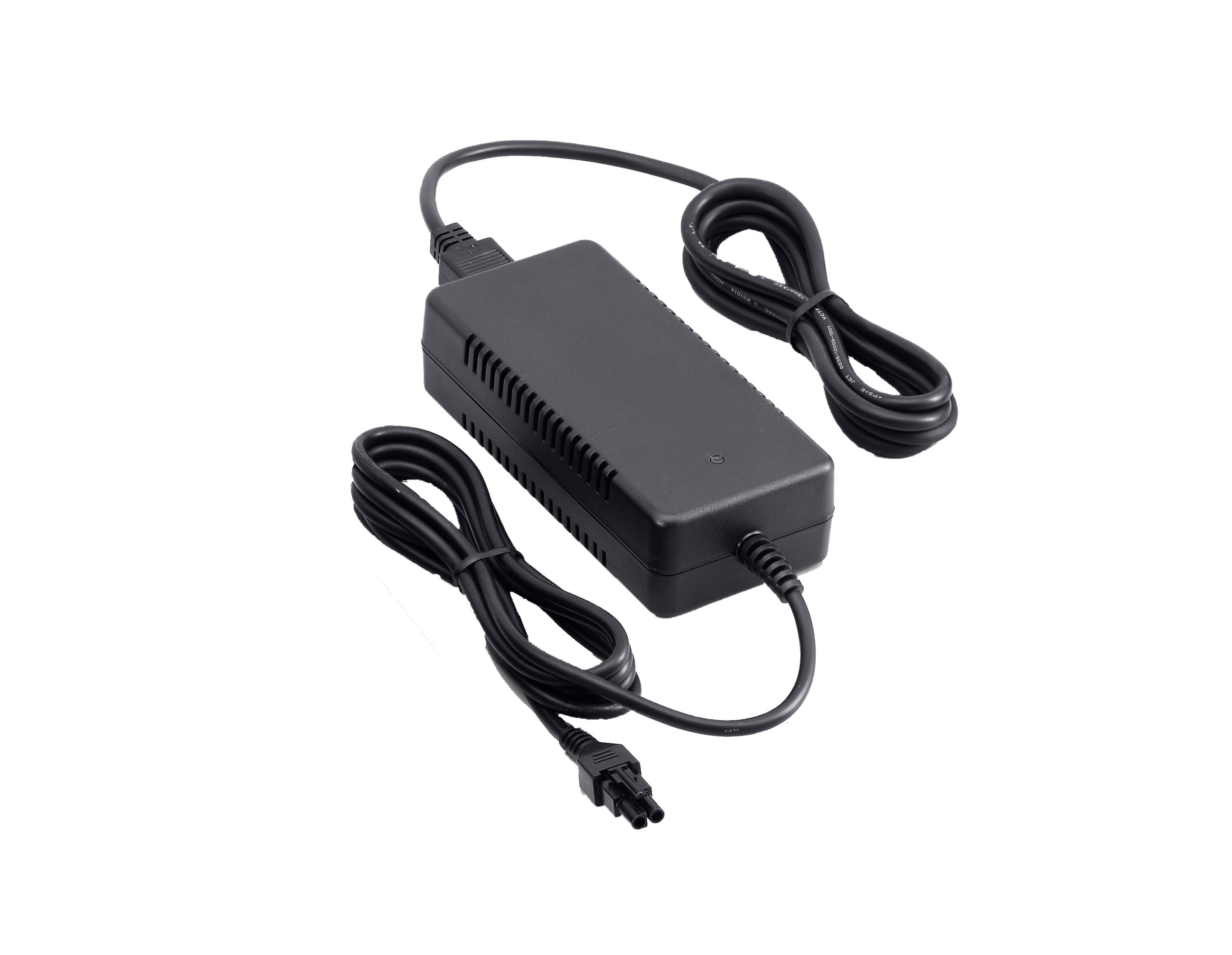

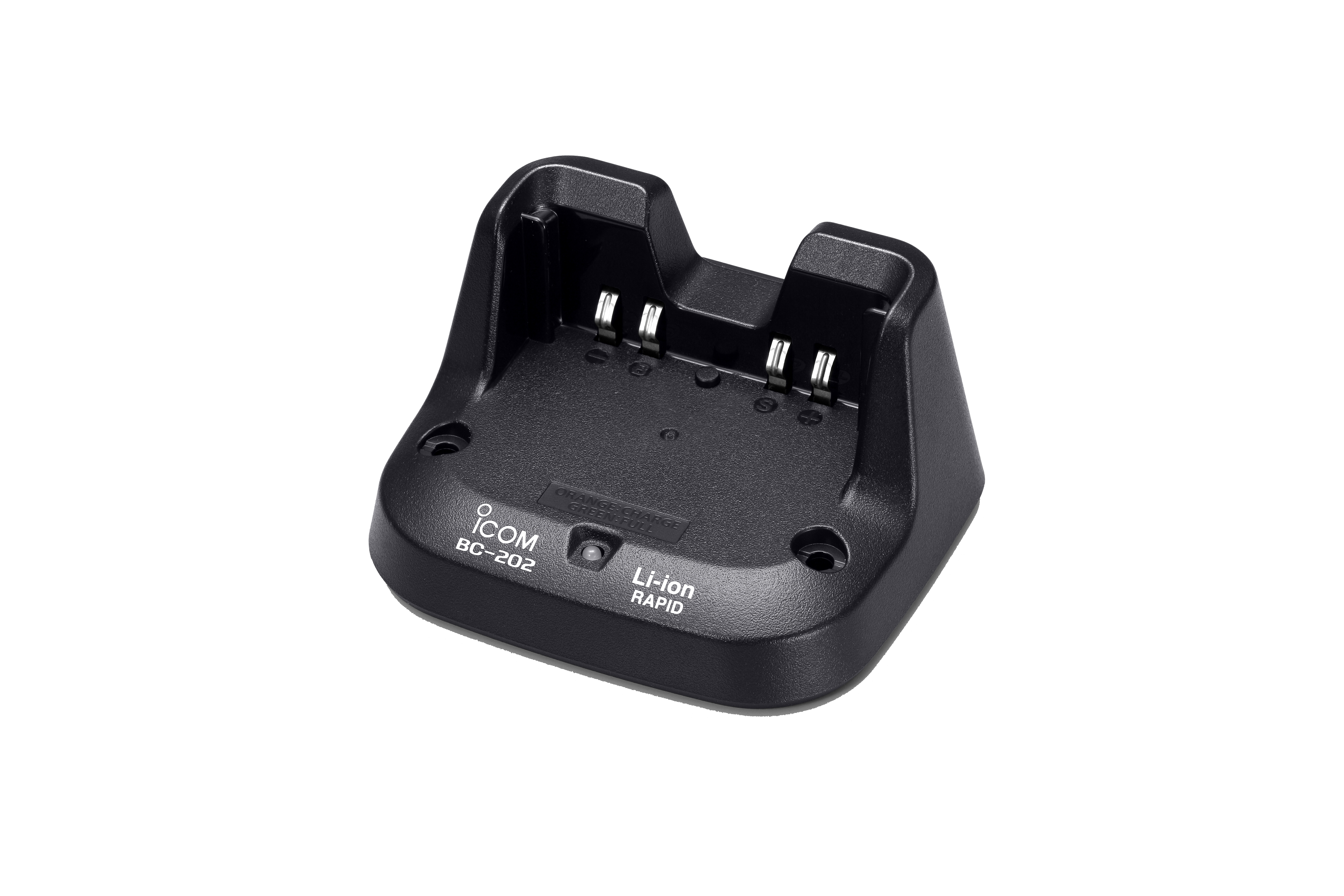

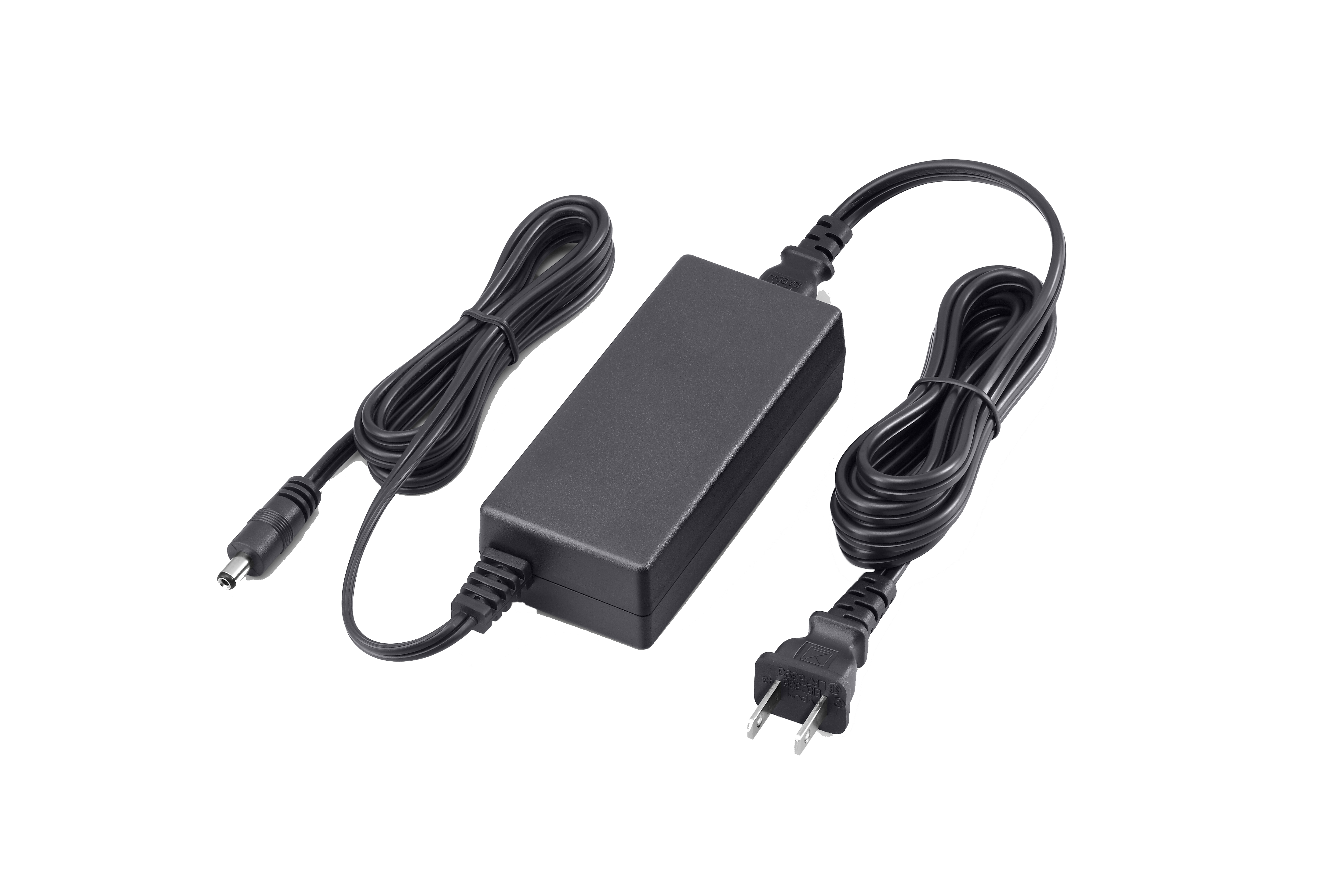

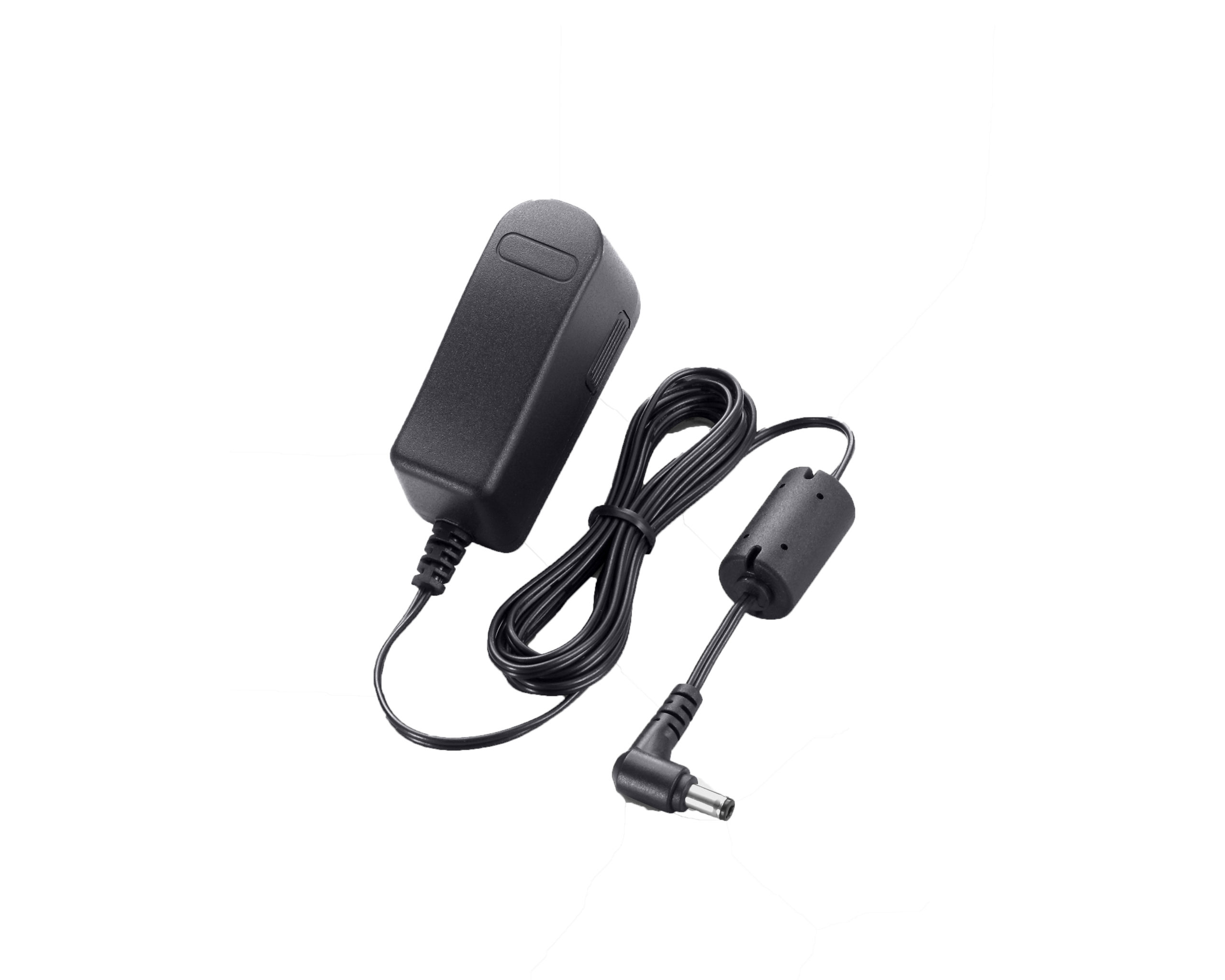

Rapid Charger

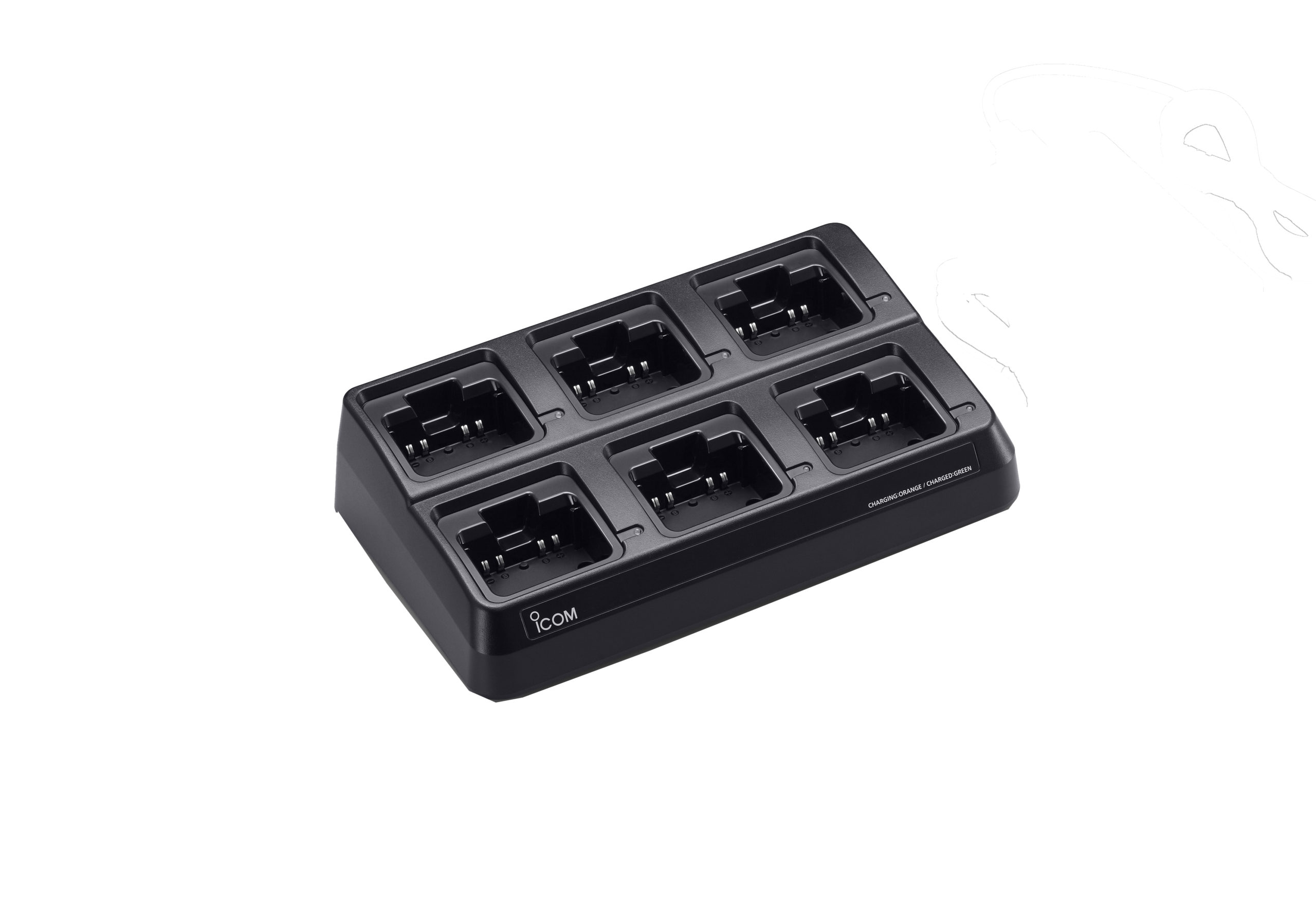

Multi- Charger

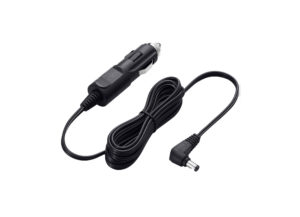

Cigarette Lighter Cables (for use with BC-218)
Charger Cradle

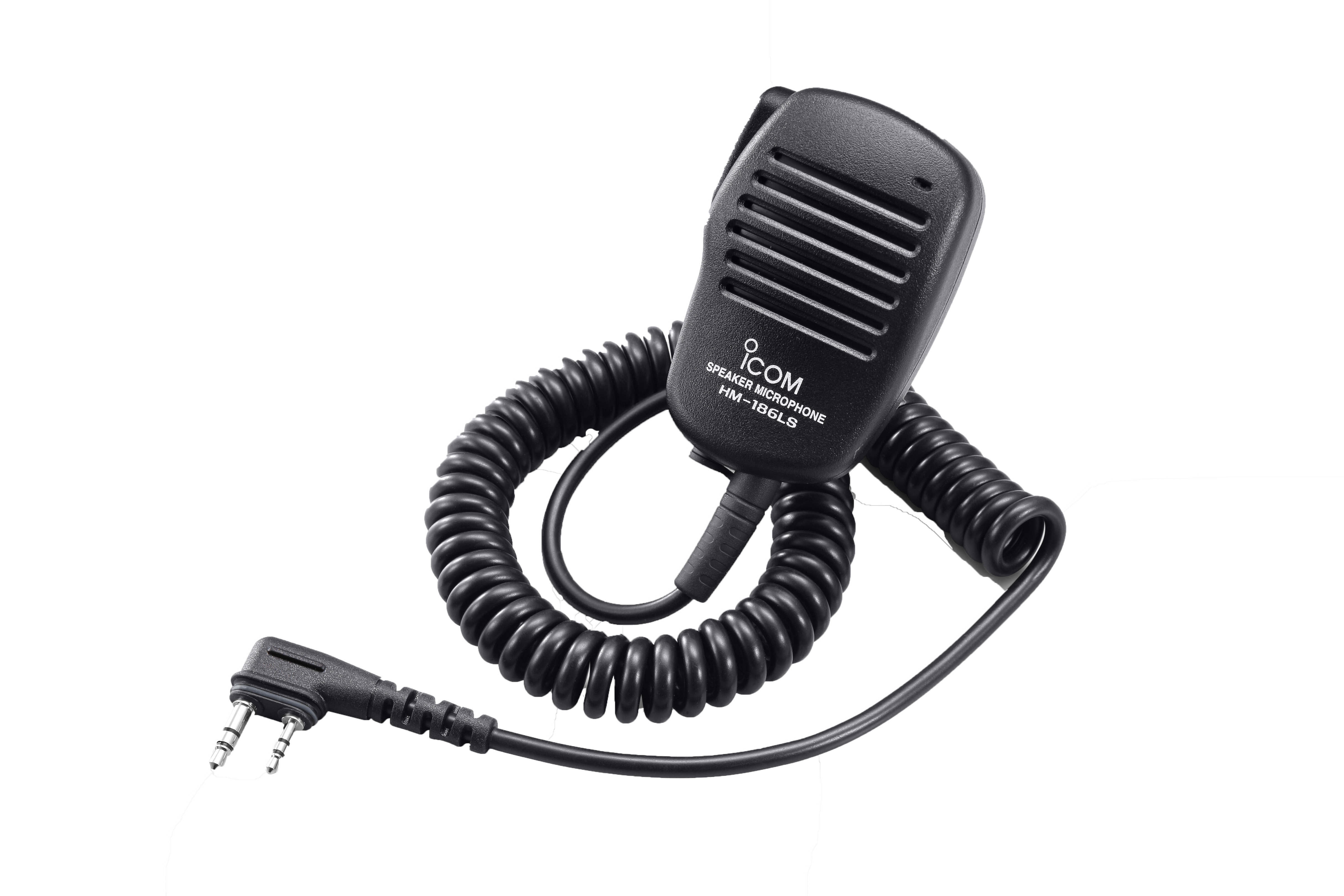

Speaker Microphones

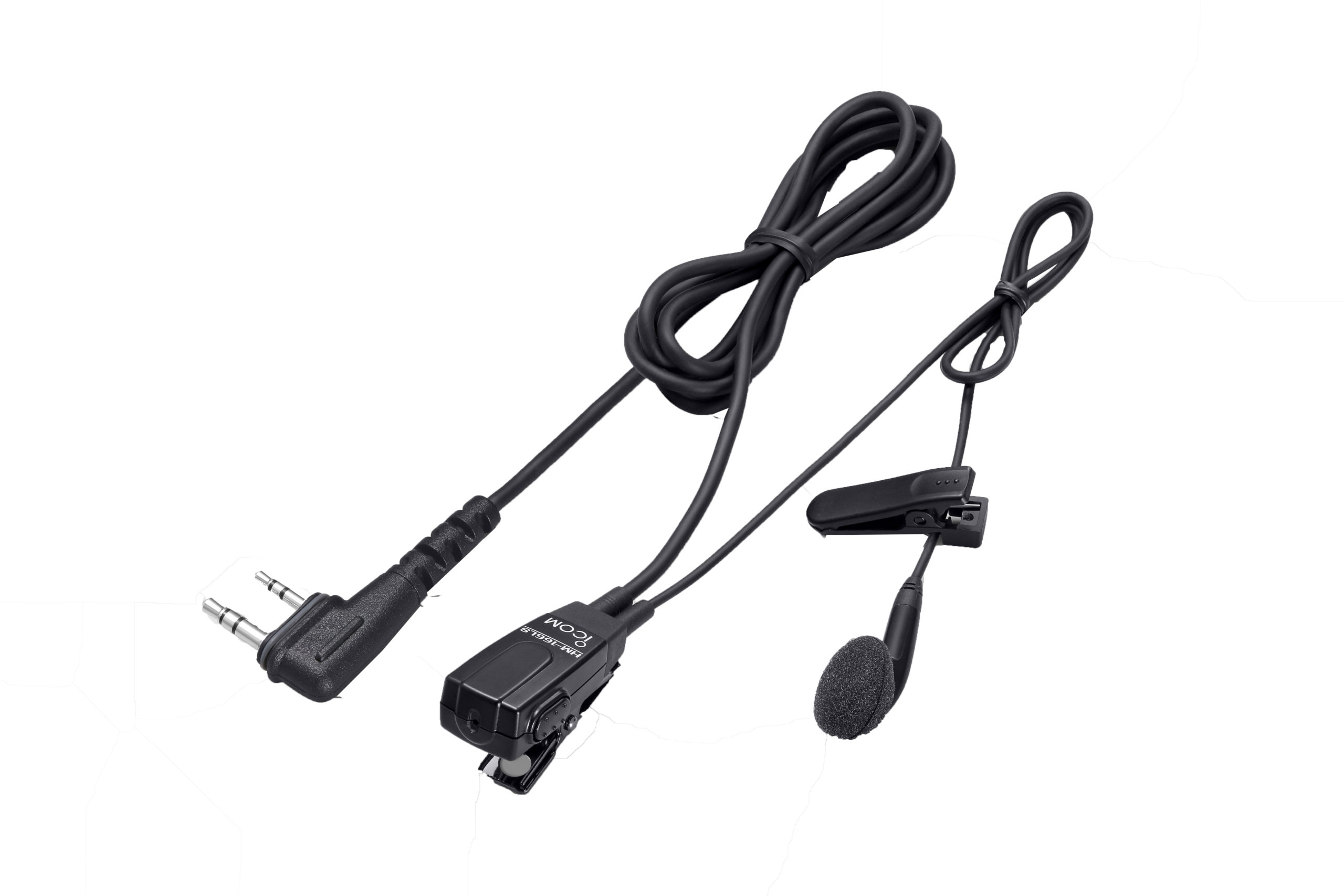

Earphone Microphones

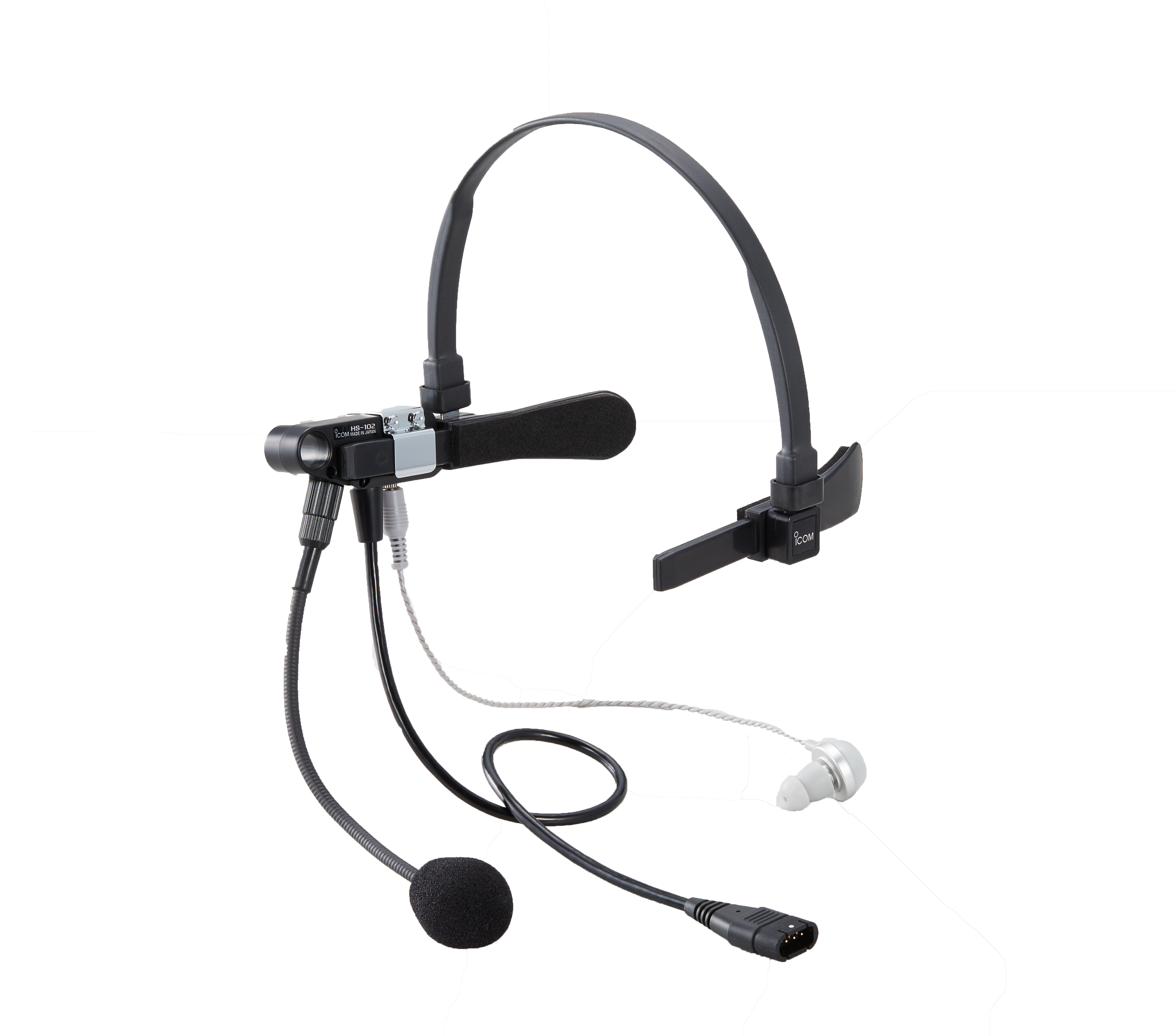

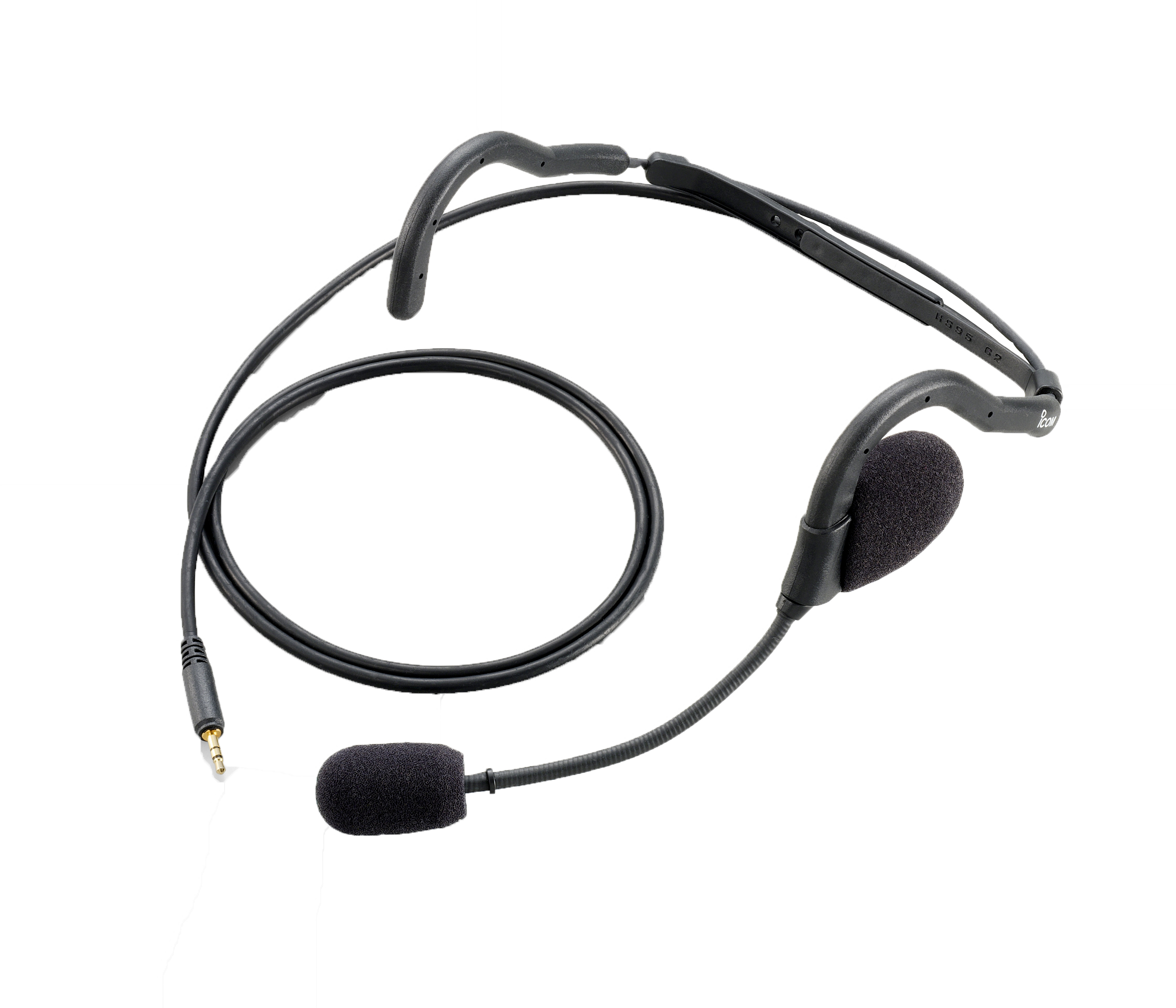

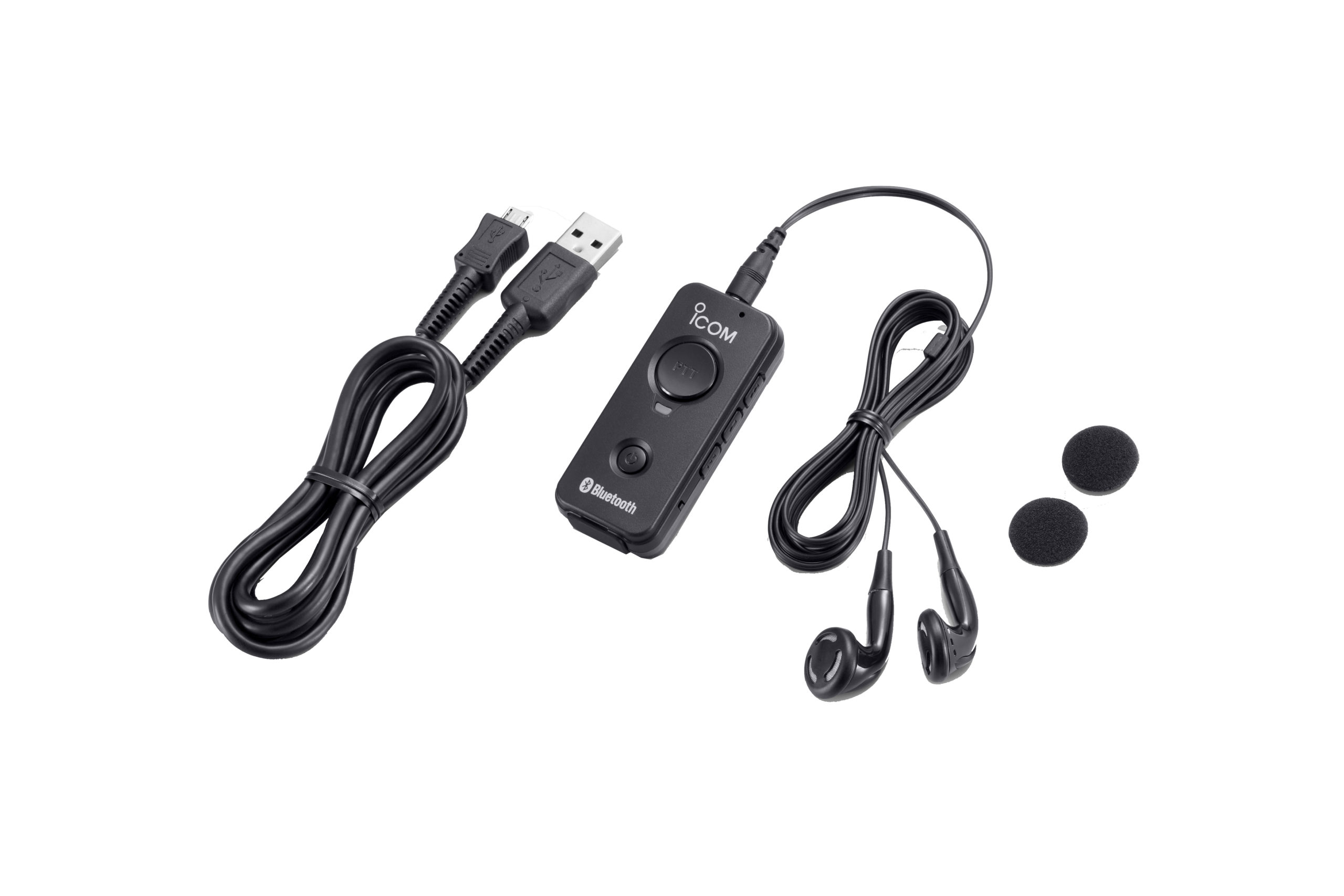

Headsets

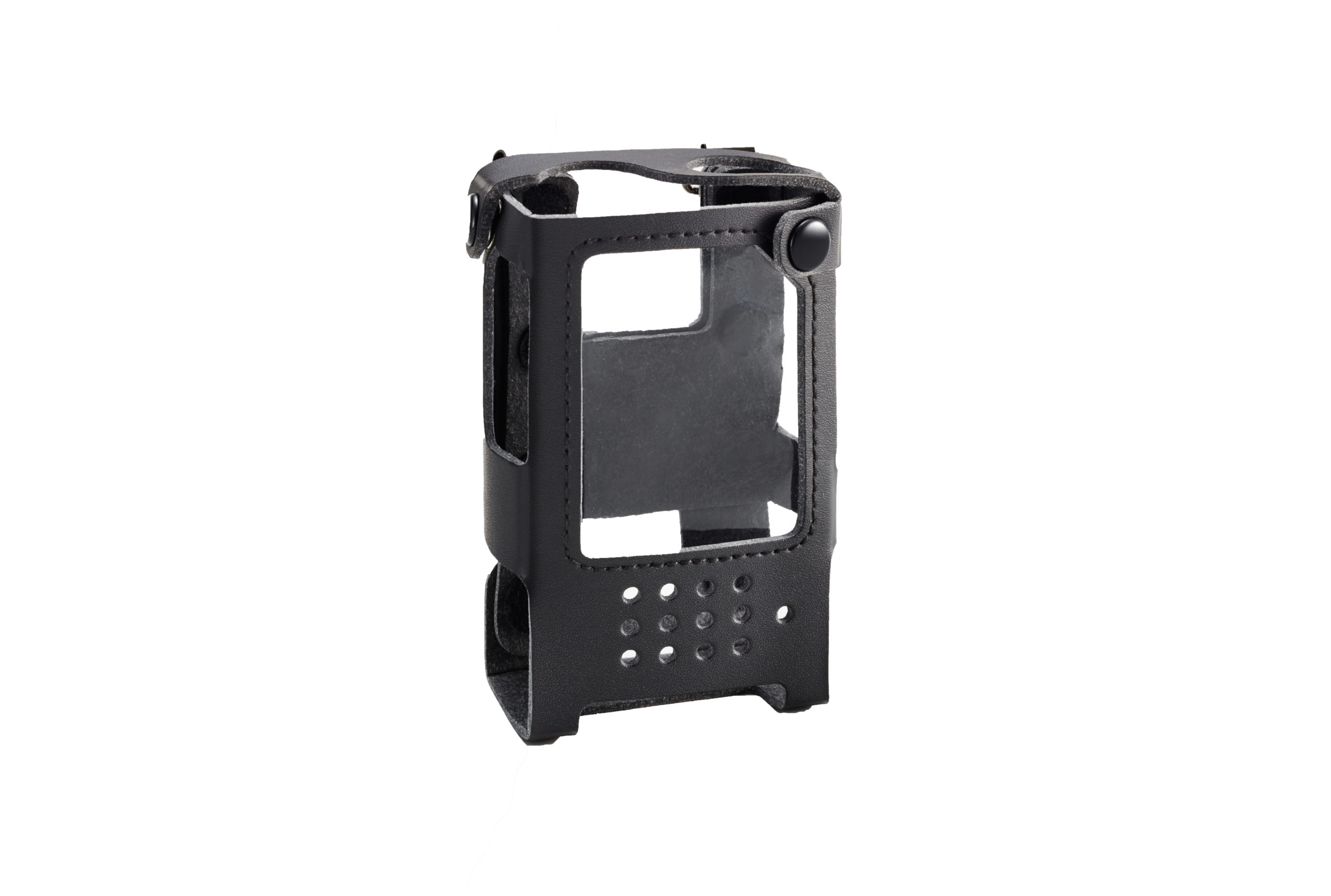

Carrying Cases
